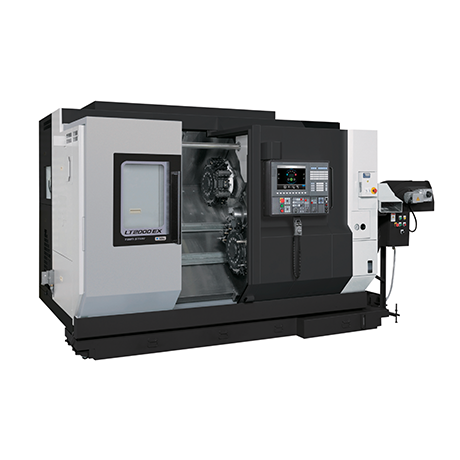

Precise Machining of High-performance Mass Production Parts

Max mm
Workpiece diameter 320
Workpiece length 300
Bar capacity diameter 65
X-Axis 210
Y-Axis 110
Z-Axis 810

Highlights

  • Milling

    • BMT enables milling at speeds of up to 12,000 min-1 (standard: 6,000 min-1)
    • Up to 16 tools can be mounted on each turret

  • High rigidity

    • Thick and robust machine structure
    • ORC (Octagonal Ram Construction) maximizes the rigidity of the Turret 2 Y-axis
    • The turtleneck structure prevents chip accumulation on Turret 2

  • High precision



    • High-resolution direct scale feedback (option)

  • High speed

    • Rapid traverse rate
      <X- / Y- / Z-axis>:
      30 / 20 / 50 m/min
      (98.4 / 65.6 / 164.1 fpm)
